Swing set plans with a fort
A fort and a swing set, built as two structures: the swings hang from their own A-frame beam, set apart from the fort so neither one shakes the other. Drawn in 3D, checked for the swing zones and priced line by line.
- Plans
- 3
- Deck, sq ft
- 64 to 80
- Structure, about
- $5,635 to $8,234
- Preliminary checks
- All passed at 20 psf
Every plan, drawn by the designer
Pick a swing set fort plan.
Each one is a full starting plan: framed, checked for 20 psf of ground snow and a 12 in frost line, and priced. Switch the view to see the frame or the dimensions.
Drawn by the designer from this plan8x8

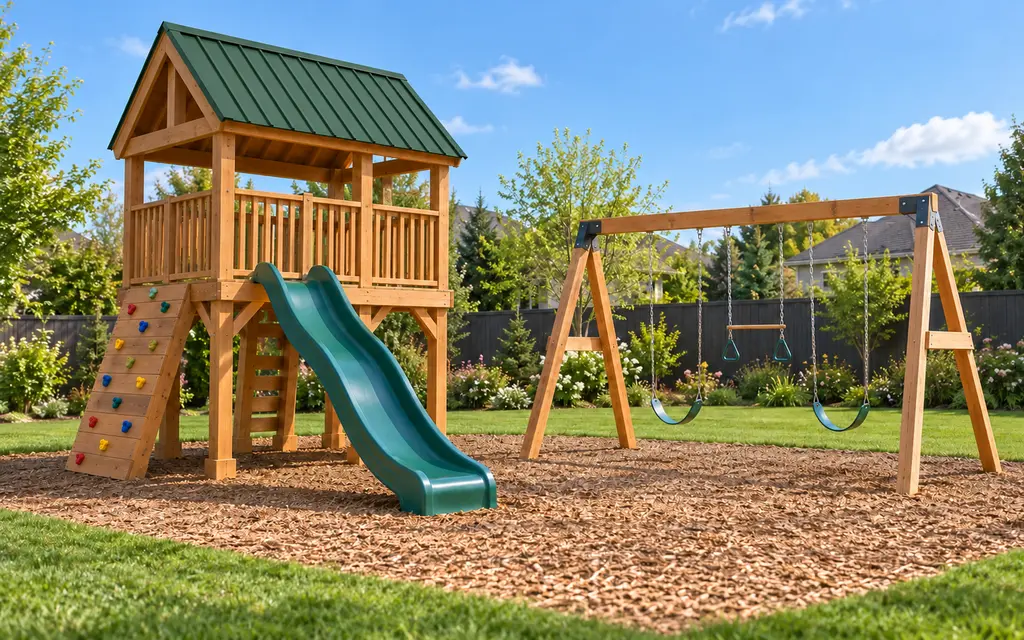

Tree fort with a swing set
A half-wall fort with a climbing wall, a green slide and a two-seat swing set on its own frame, 9 ft away.
- Footprint
- 8 ft x 8 ft, 64 sq ft
- Deck
- 5 ft
- Roof
- Gable
- Posts
- 6, 6x6
- Way up
- Climbing wall
- Swing set
- 2 seats, own frame
- Slide
- Bought, for a 5 ft deck, left side
Preliminary checks passed for the loads you entered. Local approval not checked. 1 item to settle before you build: swing beam and legs.
Materials about $7,243, before tax and delivery
What it needs
What a swing set beside a fort has to clear.
A swing is the part of a play set that moves most, so six things are checked on every plan, for 20 psf of ground snow and a 12 in frost line.
01Separate frames
Never hung from the fort
A swing is never hung from a play structure: the swing beam is its own frame, on its own footings. The plans set it 9 ft from the structure, the 9 ft apart that two structures need when a platform is more than 30 in up.
02Swing zone
Room in front and behind
The swing zone in front and behind is 2 times the pivot height. The pivot is set 47 to 96 in above the ground, and the designer draws the zone on your lot.
03Seats and spacing
Two seats, spaced apart
Two seats to a bay at most, 30 in from the frame and 24 in apart, hung on chains with the seat 16 in above the ground. The A-frame legs have no horizontal crossbars.
04The slide
A slide that never exits toward the swings
Each plan puts a bought plastic slide, made for a 5 ft deck, on the side away from the swing set. A slide never exits in front of a swing, and the 6 ft in front of its end stays clear of the swing zone, with ground cover 6 ft past the slide on every side.
05The beam
A beam your builder confirms
No source we read sizes a swing beam. The plans draw a 6x6 treated beam, which is our choice and not verified: your builder confirms it, or you buy a rated swing beam kit.
06Safety surfacing
The biggest surfacing area of the plans
A swing set needs surfacing in front of and behind the swings, twice the beam height each way, so the surfacing is a large share of the cost: $3,010 to $3,360 of the total. It is required, and it is in the total.
Side by side
The 3 swing set fort plans compared.
| Plan | Kind | Deck | Posts | Way up | Materials, about | Of it, surfacing | Build time | Checks |
|---|---|---|---|---|---|---|---|---|
| 8x8Tree fort with a swing set | With swing set | 5 ft | 6 | Climbing wall | $7,243 | $3,010 | 58 to 86 h | Passed, 1 before you build |
 8x10Playhouse with a swing set | With swing set | 5 ft | 6 | Stairs | $8,234 | $3,360 | 66 to 98 h | Passed, 1 before you build |
 8x8Open fort with a swing set | With swing set | 5 ft | 4 | Step ladder | $5,635 | $3,080 | 46 to 68 h | Passed, 1 before you build |
Each row is the starting plan as drawn, for 20 psf of ground snow and a 12 in frost line. The materials total is rounded shelf prices, before sales tax, delivery, labor and site work, with the required safety surfacing under the play area in it. Home Depot prices read October 2026. Build time is total labor hours, a broad reference. Passed means the preliminary checks passed for those loads; local approval is not checked.
What they cost
What a fort with a swing set costs to build.
$5,635 to $8,234 in materials across these 3 plans, the safety surfacing under each included.
- Lowest
- $5,635, Open fort with a swing set
- Highest
- $8,234, Playhouse with a swing set
- Safety surfacing, required
- $3,010 to $3,360
- Build time
- 46 to 98 h
Excluded: sales tax, delivery, permits, site work, engineering and equipment rental
The treehouse cost guide breaks it down by group, and every plan page lists each line.
Structure cost of each swing set fort plan
- Tree fort with a swing set$7,243$3,010 of it safety surfacing
- Playhouse with a swing set$8,234$3,360 of it safety surfacing
- Open fort with a swing set$5,635$3,080 of it safety surfacing
Home Depot prices read October 2026. Each total is the structure and the required safety surfacing under the play area at shelf prices. Lines with no price read yet are left out of the total and named on each plan page.
Build time is total labor hours from the planner's own count, a broad reference and not a schedule.
The $29 builder's plan
Free to plan. $29 to build from.
Every plan above is free to open, check and price. The builder's plan is drawn from the treehouse you finish, for one payment. These are real sheets from the 31-sheet plan for the 8x10 raised playhouse.
Free
- The design in 3D, and every change you make to it
- Every preliminary check, with its rule and its source
- The structure and its safety surfacing priced line by line
- A summary PDF of the design and its checks
$29 once
- Posts and footings dimensioned from one corner, with the hole depth for your frost line
- The platform framing, the guard with its baluster gap, and the way up with every rise
- The roof, the playhouse walls, the slide and the swing set when your design has them
- The cut list, the shopping list with store prices and the build, step by step
You check out in the designer, with your design loaded. If the plan has an error, we fix it or refund you within 30 days. Guarantee terms.
Real sheets from the 31-sheet sample plan for the 8x10 raised playhouse
01Posts and footings
02Guard and access details
03Safety surfacing
04Connection details
Questions
Anything else? Write to us or read the questions about all plans.
Questions about swing set fort plans
Not on the same frame. Build the fort and keep the swing set as its own structure, 9 ft apart, so neither one shakes the other. These plans draw it that way.
The designer sets the bay from the seats: 30 in from the frame to the nearest swing and 24 in between seats.
Yes. Each plan here has a materials list priced line by line. Home Depot prices read October 2026.
The plans draw a 6x6 treated beam, which is our choice and not verified. We do not say a 4x4 fails: your builder confirms what fits the swing you buy.
Loose fill about 9 in deep across the swing zone, which is larger than a fort alone needs. Each plan prices it on its own line.
